M4 Titanium Tapered Socket Cap Bolts
€4.63 - €7.66
M5 Titanium Tapered Socket Cap Bolts
€4.88 - €8.22
| Product Specifications | |
|---|---|
| Material | Titanium Grade 5 |
| Product Type | Bolt |
| Head Style | Tapered Socket Cap |
| Thread Diameter | M5 |
| Thread Pitch | 0.80mm |
| Pack Quantity | 1 |
| Pre-Drilled | No |
| Head Height | 5.00mm |
| Head Diameter | 8.50mm |
| Allen Key Size | 4.00mm |

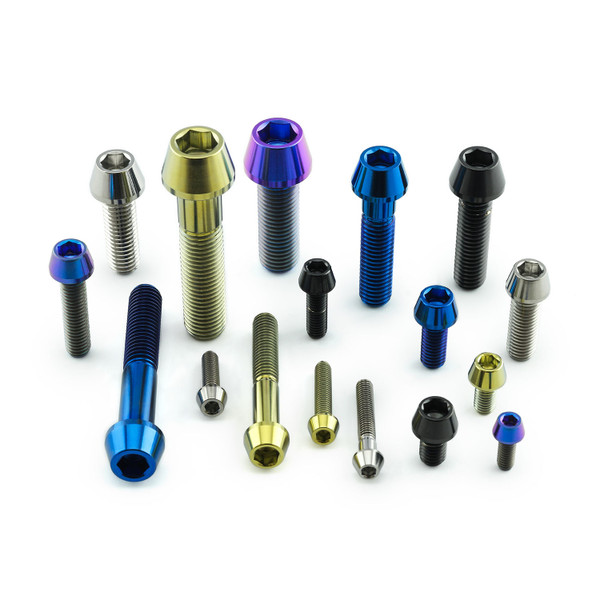

Pro-Bolt M5 Titanium Tapered Socket Cap Bolts.
Engineered with a distinctive tapered head, Pro-Bolt’s Titanium Tapered Socket Cap Bolts combine aerodynamic styling with exceptional performance for demanding applications.
Precision machined from Aerospace Grade Titanium (Grade 5: 6AL-4V), offering outstanding strength, corrosion resistance, and up to 40% weight savings compared to steel fasteners — ideal for motorsport, performance engineering, and custom builds.
The conical head of this design offers streamlined good looks, the base of the head is a standard socket cap manufactured to DIN 912 standards but tapers toward the Allen key drive saving even more weight whilst looking smooth and sleek in the process.
Key Features:
| Bolt length | Thread length | Shank length | Weight |
|---|
| 10.00mm | 10.00mm | - | 1.42g |
| 16.00mm | 16.00mm | - | 1.82g |
| 20.00mm | 20.00mm | - | 2.09g |
| 25.00mm | 23.00mm | 2.00mm | 2.68g |
| 30.00mm | 23.00mm | 7.00mm | 2.89g |
| 35.00mm | 23.00mm | 12.00mm | 3.31g |
| 40.00mm | 23.00mm | 17.00mm | 3.72g |
| 45.00mm | 23.00mm | 22.00mm | 4.13g |
| 50.00mm | 23.00mm | 27.00mm | 4.56g |
